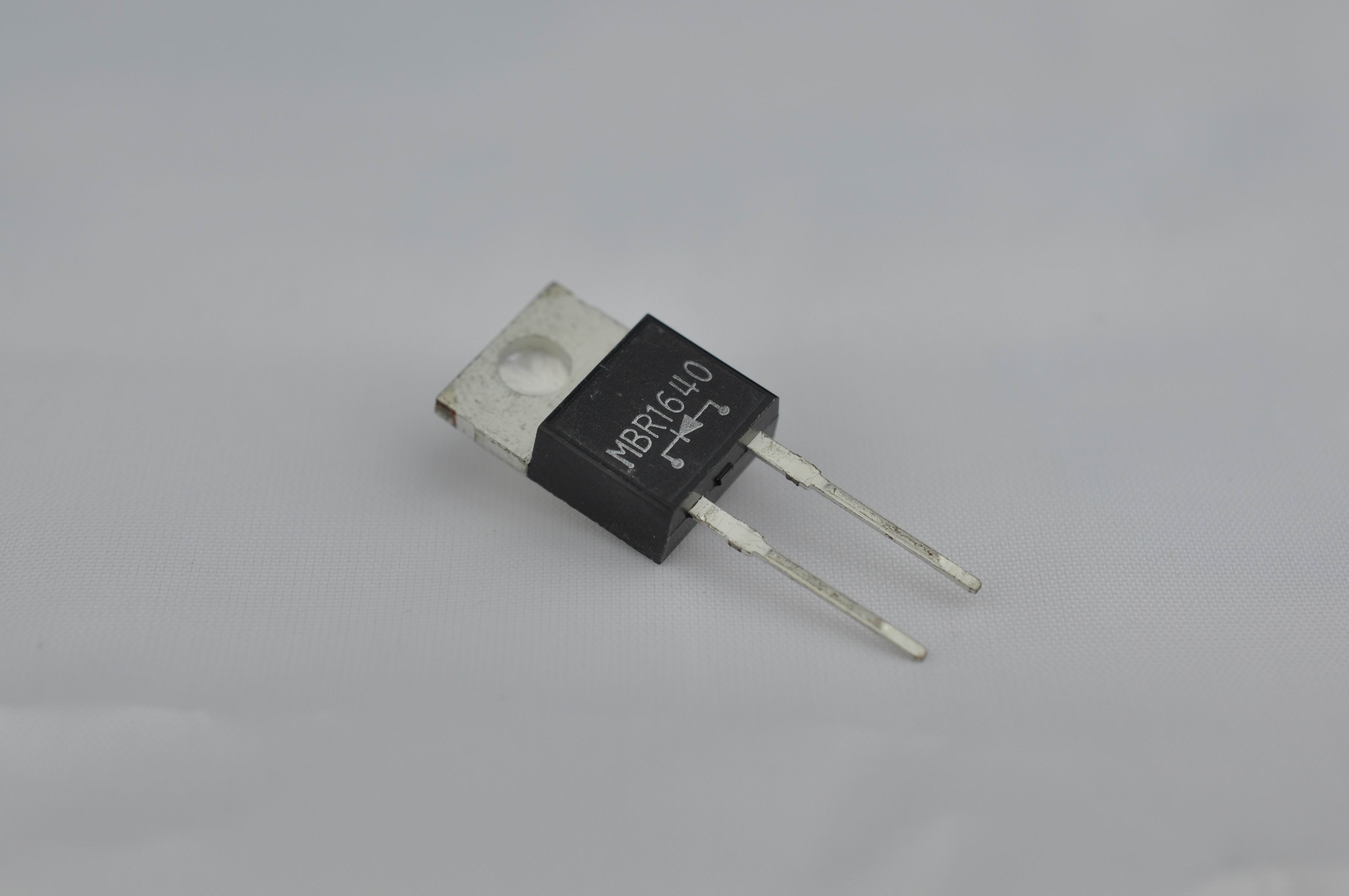

Super Fast Recovery Rectifier Diode

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability

Inquire Now None

Product Details

Type	I(AV)	V_RRM	I_FSM	V_FM		I_RM	T_rr	Case Style	Download
				V_FM		I_RM
		(I=I_RM)		V_FM	I_(AV)	T_A=25℃
	A	V	A	V	A	μA	ns
SF11	1	50	30	1	1	5	35	DO-41	SF18.pdf
SF12	1	100	30	1	1	5	35	DO-41
SF13	1	150	30	1	1	5	35	DO-41
SF14	1	200	30	1	1	5	35	DO-41
SF15	1	300	30	1.3	1	5	35	DO-41
SF16	1	400	30	1.3	1	5	35	DO-41
SF18	1	600	30	1.7	1	10	35	DO-41
MUR120	1	200	30	0.875	1	2	25	DO-41	MUR120.pdf
MUR140	1	400	35	1.25	1	5	50	DO-41	MUR160.pdf
MUR160	1	600	35	1.25	1	5	50	DO-41	MUR160.pdf
ES1A	1	50	30	1	1	5	35	SMA	ES1A-ES1M.pdf
ES1B	1	100	30	1	1	5	35	SMA
ES1D	1	200	30	1	1	5	35	SMA
ES1G	1	400	30	1	1	5	35	SMA
ES1J	1	600	30	1.3	1	5	35	SMA
ES1K	1	800	30	1.3	1	5	35	SMA
ES1M	1	1000	30	1.7	1	5	35	SMA
RS1A	1	50	30	1.3	1	5	150	SMA	RS1M.pdf
RS1B	1	100	30	1.3	1	5	150	SMA
RS1D	1	200	30	1.3	1	5	150	SMA
RS1G	1	400	30	1.3	1	5	150	SMA
RS1J	1	600	30	1.3	1	5	250	SMA
RS1K	1	800	30	1.3	1	5	500	SMA
RS1M	1	1000	30	1.3	1	5	500	SMA
RS1AL	1	50	25	1.3	1	5	150	SOD-123FL	SOD123-FR RS1ML.pdf
RS1BL	1	100	25	1.3	1	5	150	SOD-123FL
RS1DL	1	200	25	1.3	1	5	150	SOD-123FL
RS1GL	1	400	25	1.3	1	5	150	SOD-123FL
RS1JL	1	600	25	1.3	1	5	250	SOD-123FL
RS1KL	1	800	25	1.3	1	5	500	SOD-123FL
RS1ML	1	1000	25	1.3	1	5	500	SOD-123FL
SF21	2	50	50	1	2	5	35	DO-15	SF28.pdf
SF22	2	100	50	1	2	5	35	DO-15
SF23	2	150	50	1	2	5	35	DO-15
SF24	2	200	50	1	2	5	35	DO-15
SF25	2	300	50	1.3	2	5	35	DO-15
SF26	2	400	50	1.3	2	5	35	DO-15
SF27	2	600	50	1.7	2	10	35	DO-15
SF28	2	500	50	1.7	2	10	35	DO-15
ES2A	2	50	50	1	2	5	35	SMB	ES2A~ES2J.pdf
ES2B	2	100	50	1	2	5	35	SMB
ES2C	2	150	50	1	2	5	35	SMB
ES2D	2	200	50	1	2	5	35	SMB
ES2E	2	300	50	1.3	2	5	35	SMB
ES2G	2	400	50	1.3	2	5	35	SMB
ES2H	2	500	50	1.7	2	5	35	SMB
ES2J	2	600	50	1.7	2	5	35	SMB
SF31	3	50	125	1	3	5	35	DO-27	SF36.pdf
SF32	3	100	125	1	3	5	35	DO-27
SF33	3	150	125	1	3	5	35	DO-27
SF34	3	200	125	1	3	5	35	DO-27
SF35	3	300	125	1.3	3	5	35	DO-27
SF36	3	400	125	1.3	3	5	35	DO-27
SF37	3	500	125	1.7	3	5	35	DO-27
SF38	3	600	125	1.7	3	5	35	DO-27
ES3A	3	50	100	1	3	10	35	SMC	ES3A-J.pdf
ES3B	3	100	100	1	3	10	35	SMC
ES3C	3	150	100	1	3	10	35	SMC
ES3D	3	200	100	1	3	10	35	SMC
ES3E	3	300	100	1.3	3	10	35	SMC
ES3G	3	400	100	1.3	3	10	35	SMC
ES3H	3	500	100	1.7	3	10	35	SMC
ES3J	3	600	100	1.7	3	10	35	SMC
SF51	5	50	150	1	5	5	35	DO-27	SF56.pdf
SF52	5	100	150	1	5	5	35	DO-27
SF53	5	150	150	1	5	5	35	DO-27
SF54	5	200	150	1	5	5	35	DO-27
SF55	5	300	150	1	5	5	35	DO-27
SF56	5	400	150	1.3	5	5	35	DO-27
SF57	5	500	150	1.7	5	5	35	DO-27
SF58	5	600	150	1.7	5	5	35	DO-27
MUR805	8	50	100	0.895	8	5	30	TO-220AC	MUR860.pdf
MUR810	8	100	100	0.895	8	5	30	TO-220AC
MUR815	8	150	100	0.895	8	5	30	TO-220AC
MUR820	8	200	100	0.895	8	5	30	TO-220AC
MUR840	8	400	100	1	8	10	50	TO-220AC
MUR860	8	600	100	1.3	8	10	50	TO-220AC
MUR1010	10	100	100	1	10	10	35	TO-220AC	MUR1010-1060.pdf
MUR1020	10	200	100	1	10	10	35	TO-220AC
MUR1040	10	400	100	1.3	10	10	50	TO-220AC
MUR1060	10	600	100	1.5	10	10	50	TO-220AC
MUR1605CT	16	50	200	0.98	16	10	35	TO-220AB	MUR1620CT.pdf
MUR1610CT	16	100	200	0.98	16	10	35	TO-220AB
MUR1615CT	16	150	200	0.98	16	10	35	TO-220AB
MUR1620CT	16	200	200	0.98	16	10	35	TO-220AB
MUR1630CT	16	300	125	1.3	16	10	60	TO-220AB
MUR1640CT	16	400	125	1.3	16	10	60	TO-220AB
MUR1645CT	16	450	125	1.6	16	10	60	TO-220AB
MUR1660CT	16	600	125	1.6	16	10	60	TO-220AB
MUR3005PT	30	50	300	1.05	15	10	50	TO-247	MUR3060PT.pdf
MUR3010PT	30	100	300	1.05	15	10	50	TO-247
MUR3020PT	30	200	300	1.05	15	10	50	TO-247
MUR3040PT	30	400	300	1.3	15	10	50	TO-247
MUR3060PT	30	600	300	1.7	15	10	80	TO-247
