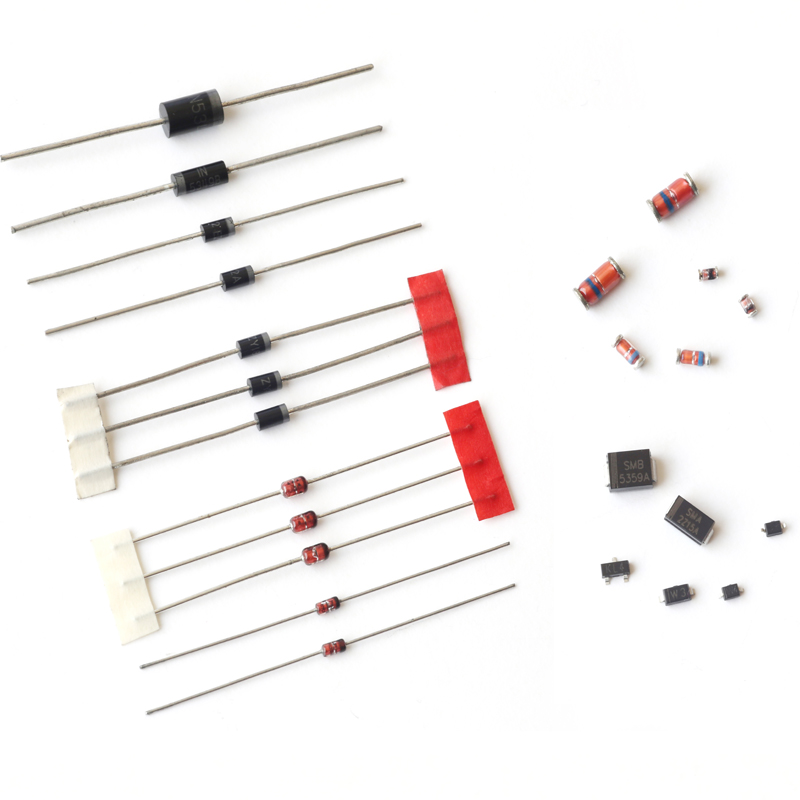

What is a Zener diode and its function?

Introduction to Zener Diodes

A Zener diode is a type of diode with special characteristics that can maintain a constant voltage under reverse bias conditions. It is commonly used in voltage regulation and overvoltage protection circuits. Unlike ordinary diodes, the primary function of a Zener diode is to maintain a stable voltage when the reverse voltage exceeds a certain threshold. Therefore, it is widely applied in regulated power supplies, overvoltage protection, signal conditioning, and other areas.

Working Principle of Zener Diodes

The working principle of a Zener diode is based on its "breakdown characteristic." When the Zener diode operates under reverse bias and the reverse voltage is below a specific value (known as the Zener voltage or breakdown voltage), it behaves similarly to an ordinary diode, allowing almost no current to flow. However, once the reverse voltage reaches or exceeds its Zener voltage, the diode enters the "regulation region," allowing current to flow at a specific voltage. At this point, the voltage across the diode remains almost constant until the reverse voltage changes to another limit.

The characteristics of the Zener diode in the regulation region make it a highly useful component in voltage regulation and overvoltage protection circuits.

Features of Zener Diodes

Voltage Regulation

When operating under reverse bias, a Zener diode can maintain a nearly constant voltage around its Zener voltage. Even if the reverse current changes, the voltage across the diode remains almost unchanged. This characteristic makes it highly valuable in stable voltage source applications.

Breakdown Voltage

The breakdown voltage (Zener voltage) is a critical parameter determined during the design of a Zener diode. When the reverse voltage reaches or exceeds this value, the diode enters the voltage regulation state. Different models of Zener diodes have different Zener voltages, typically ranging from a few volts to several hundred volts.

Compact Size and Low Cost

Zener diodes are generally small in size and low in cost, making them easy to integrate into various circuits. They are particularly suitable for voltage protection and regulation in small electronic devices.

Limited Current Capacity

Although Zener diodes can maintain a stable voltage, their maximum current-carrying capacity is limited. Exceeding the rated current may damage the diode, so they are typically used with current-limiting resistors.

Temperature Sensitivity

The Zener voltage of a Zener diode changes slightly with temperature variations. Therefore, temperature effects on its performance must be considered when designing circuits.

Applications of Zener Diodes

The main application areas of Zener diodes include:

Voltage Regulation Circuits

Zener diodes are commonly used to provide stable reference voltages or act as voltage regulators. For example, in power supply circuits, they can maintain a stable output voltage, especially in low-power power supply designs.

Overvoltage Protection Circuits

Zener diodes are used in overvoltage protection circuits. When the input voltage becomes too high, the Zener diode enters the regulation region, limiting the voltage to a certain level and protecting subsequent circuits from damage.

Signal Conditioning

In some signal processing circuits, Zener diodes can be used to limit the voltage range of signals, preventing them from exceeding the required voltage levels.

Battery Voltage Monitoring

In battery-powered devices, Zener diodes are often used to monitor battery voltage, ensuring it stays within a safe range and preventing damage to the device due to excessively low or high voltage.

Transient Voltage Suppression (TVS) Protection

Zener diodes are commonly used as Transient Voltage Suppressors (TVS diodes) in protection circuits to counteract voltage surges and transient overvoltages, such as lightning strikes or power fluctuations.

Reference Voltage Source

Zener diodes are frequently used to provide stable reference voltages, serving as a baseline for other circuits or sensors. For example, in analog circuits, they can act as reference voltage sources for comparators, ADCs, and other modules.

The Zener diode is an essential electronic component widely used in voltage regulation, protection, monitoring, and signal conditioning, among other fields. Its unique voltage regulation characteristics make it highly valuable in power management and circuit protection. When designing circuits, it is important to select the appropriate Zener diode model based on specific requirements and consider parameters such as voltage, current, power rating, and temperature characteristics.
